Products
48%
- Brand : Baumer
- Supply voltage : 10 … 30 V, DC
- Sensing distance : 8 mm
- Type of connection : Cable, L=2 m
- Warranty : 12 Months
36%
61%
42%
- Brand : Panasonic
- Cable Length : 2Mtr. Cable
- Jacket Material : PVC
- Connector Type : M12, 4-pin, Female, Straight
46%
44%
40%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : NPN
- Output Operation : Switchable either Light-ON or Dark-ON
- Operation indicator : Orange LED(lights up when the output is ON)
- Warranty : 12 Months
43%
- Brand : Panasonic
- Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
- Output : PNP open-collector transistor
- Output operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
11%

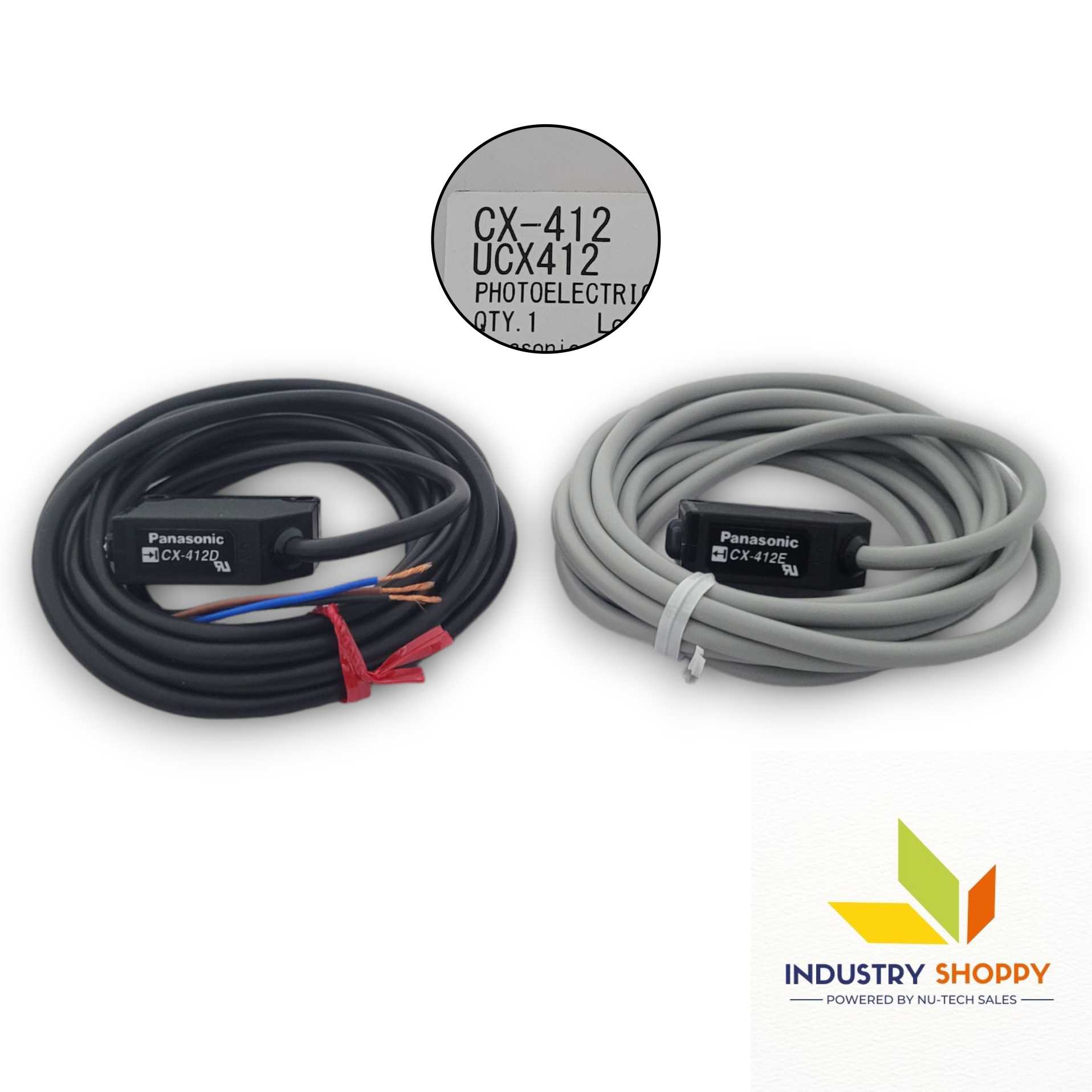

| Brand | Panasonic |
| Product Name | CX-412 |
| CE Marking Directive Compliance | EMC Directive, RoHS Directive |
| Sensing Range | 15 m (49.213 ft) |
| Sensing Object | Ø12 mm (0.472 in) or more opaque object |
| (With optional slit masks: Ø0.5 mm (0.020 in) detectable using round slit mask) | |
| Hysteresis | - |
| Supply Voltage | 12–24 V DC ±10% (Ripple P-P 10% or less) |
| Current Consumption | Emitter: ≤20 mA |
| Receiver: ≤10 mA | |
| Output | NPN open-collector transistor |
| - Max. sink current: 100 mA | |
| - Applied voltage: ≤30 V DC (output–0 V) | |
| - Residual voltage: ≤2 V (100 mA), ≤1 V (16 mA) | |
| Output Operation | Switchable: Light-ON or Dark-ON |
| Short-Circuit Protection | Incorporated |
| Response Time | 1 ms or less |
| Operation Indicator | Orange LED (ON when output is ON, receiver side for thru-beam type) |
| Stability Indicator | Green LED (ON under stable light/dark condition, receiver side for thru-beam type) |
| Power Indicator | Green LED (ON when power is ON, emitter side) |
| Sensitivity Adjuster | Continuously variable adjuster (receiver side for thru-beam type) |
| Automatic Interference Prevention Function | - |
| Protection | IP67 (IEC) |
| Ambient Temperature | Operation: -25 to +55 °C (-13 to +131 °F) |
| Storage: -30 to +70 °C (-22 to +158 °F) | |
| (No dew condensation or icing allowed) | |
| Ambient Humidity | 35–85% RH (Operation & Storage) |
| Ambient Illuminance | ≤3,000 lx (incandescent, at receiver face) |
| Voltage Withstandability | 1,000 V AC for 1 min. (supply terminals ↔ enclosure) |
| Insulation Resistance | ≥20 MΩ with 250 V DC megger (supply terminals ↔ enclosure) |
| Vibration Resistance | 10–500 Hz, 1.5 mm amplitude (10 G max.), X/Y/Z directions, 2 hrs each |
| Shock Resistance | 500 m/s² (≈50 G), X/Y/Z directions, 3 times each |
| Emitting Element (Modulated) | Infrared LED |
| Peak Emission Wavelength | 870 nm |
| Material | Enclosure: PBT |
| Lens: Acrylic | |
| Indicator cover: Acrylic | |
| Cable | 0.2 mm² cabtyre cable (Emitter: 2-core, Receiver: 3-core), 2 m (6.562 ft) |
| Cable Extension | Up to 100 m (328.084 ft) with ≥0.3 mm² cable (both emitter & receiver) |
39%
- Brand : Panasonic
- Output : PNP open-collector transistor
- Supply Voltage : 12..24 VDC
- Current consumption : 10 mA or less
- Operation indicator : Orange LED(lights up when the output is ON)
- Warranty : 12 Months
16%
- Brand : Panasonic
- Output : PNP open-collector transistor
- Supply Voltage : 12..24 VDC
- Current consumption : 10 mA or less
- Operation indicator : Orange LED(lights up when the output is ON)
- Warranty : 12 Months
35%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : NPN
- Output Operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
37%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : PNP
- Output Operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
42%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : NPN
- Output Operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
26%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : PNP
- Output Operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
39%
- Brand : Panasonic
- Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
- Output : NPN open-collector transistor
- Output operation : Switchable either Detection-ON or Detection-OFF
- Warranty : 12 Months
30%
- Brand : Panasonic
- Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
- Output : PNP open-collector transistor
- Output operation : Switchable either Detection-ON or Detection-OFF
- Warranty : 12 Months
23%
- Brand : Panasonic
- Output : PNP open-collector transistor
- Supply Voltage : 12..24 VDC
- Current consumption Emitter : 20 mA or less
- Operation indicator : Orange LED(lights up when the output is ON)
- Warranty : 12 Months
32%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : NPN open-collector transistor
- Output Operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
32%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : PNP open-collector transistor
- Output Operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
20%
- Brand : Panasonic
- Output : NPN open-collector transistor
- Supply Voltage : 12..24 VDC
- Current consumption Emitter : 20 mA or less
- Operation indicator : Orange LED(lights up when the output is ON)
- Warranty : 12 Months
24%
- Brand : Panasonic
- Output : PNP open-collector transistor
- Supply Voltage : 12..24 VDC
- Current consumption Emitter : 20 mA or less Operation indicator : Orange LED(lights up when the output is ON)
- Warranty : 12 Months
37%
- Brand : Panasonic
- Supply Voltage : 12 to 24 V DC ±10% Ripple P-P 10% or less
- Response Time : 1 ms or less
- Cable : 0.2 mm² 3-core cabtyre cable, 2 m (6.562 ft) long
- Warranty : 12 Months
36%
- Brand : Panasonic
- Supply voltage : 12..24 VDC
- Dimension : 10 mm x 25 mm x 64.3 mm
- Switching output : PNP open-collector transistor
- Output Operation : Switchable either Light-ON or Dark-ON
- Warranty : 12 Months
