Tianma TM070RBHG04 LCD Module with Touch
2 in stock
- Brand : Tianma
- Diagonal Size : 7.0″
- Condition : New
- Panel Type : a-Si TFT-LCD, LCM
- Work Mode : TN, Normally White, Transmissive
₹11,680.00 ₹16,500.00 GST Extra
2 in stock

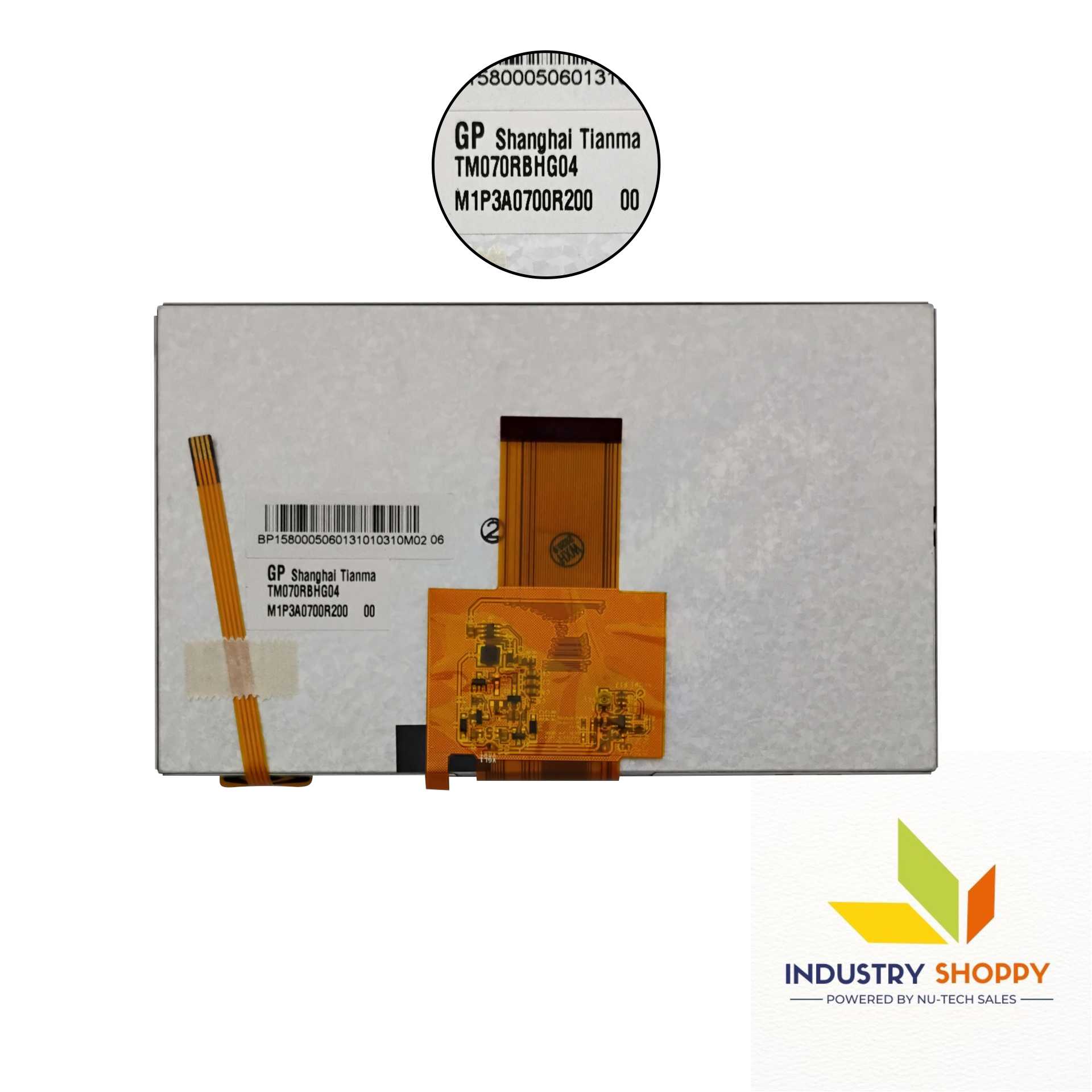

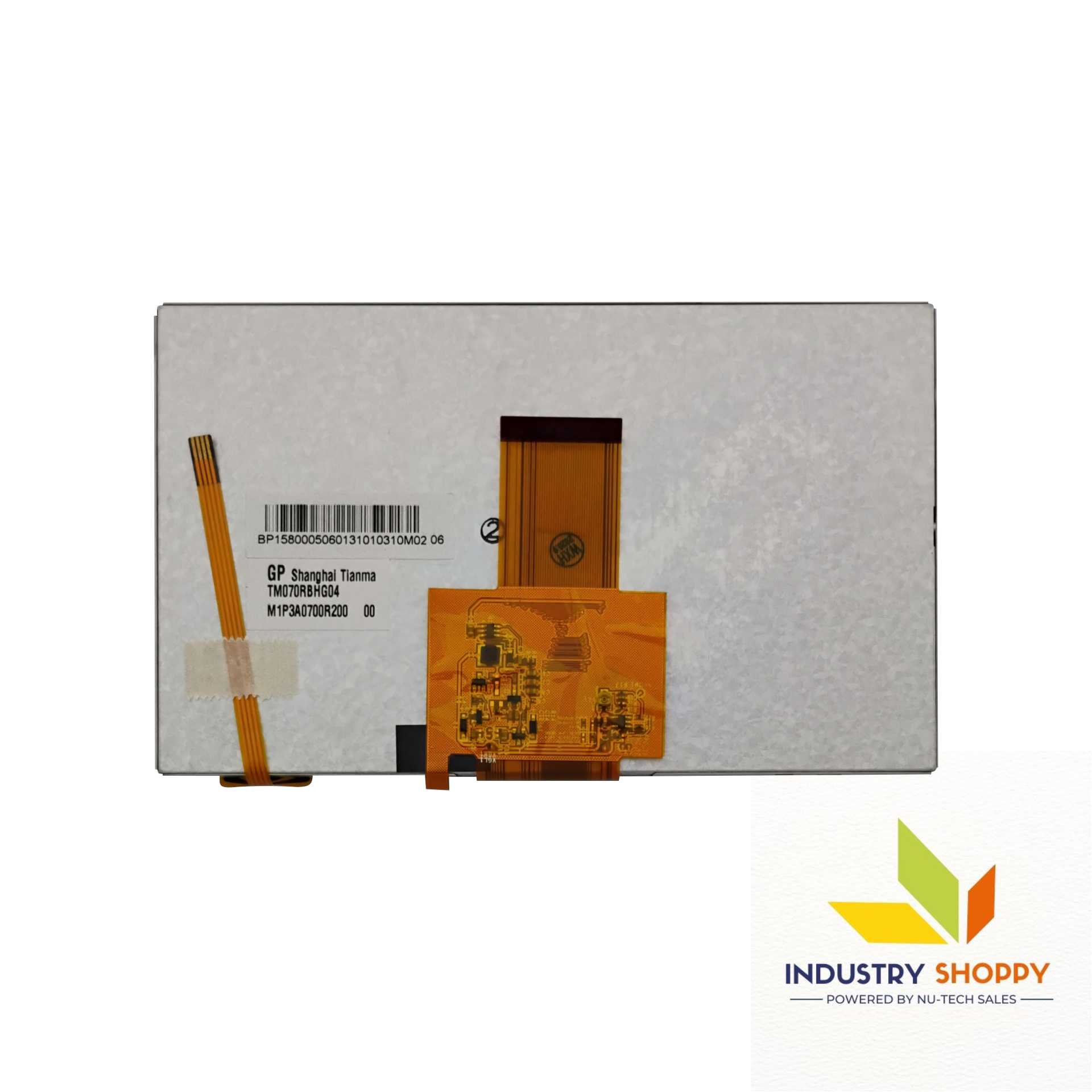

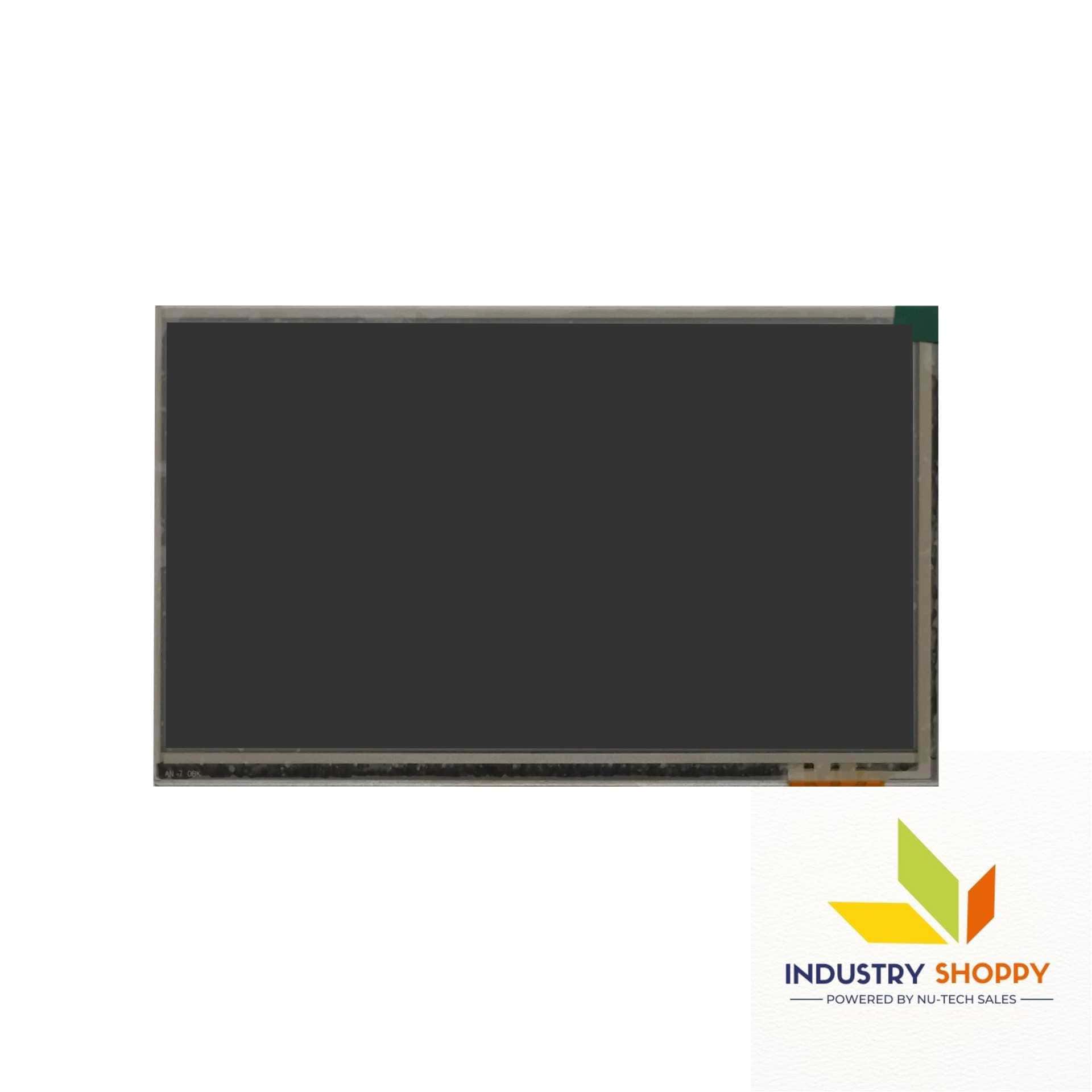

Tianma TM070RBHG04 LCD Module with Touch
The Tianma TM070RBHG04 LCD Module With Touch offers 7.0-inch a-Si TFT-LCD module is engineered to deliver outstanding visual clarity and durability for a variety of applications. With a resolution of 800×480 pixels (WVGA) and a pixel density of 134PPI, this display provides sharp, vibrant imagery that enhances user experience across industrial, automotive, and consumer electronics platforms.
The active area measures 154.08mm (W) × 85.92mm (H), offering a generous and efficient screen space for dynamic content. Meanwhile, its compact outline dimensions of 164.9mm × 100mm × 7.1mm ensure it can be easily integrated into a range of system designs.
Equipped with antiglare treatment, the panel ensures clear visibility even under bright ambient lighting. It boasts a strong contrast ratio of 1000:1 (Typ.) and wide viewing angles of 80°/80° horizontally and 60°/80° vertically, ensuring content remains vivid and readable from various perspectives. The typical luminance of 280 cd/m² further supports excellent brightness in diverse environments.

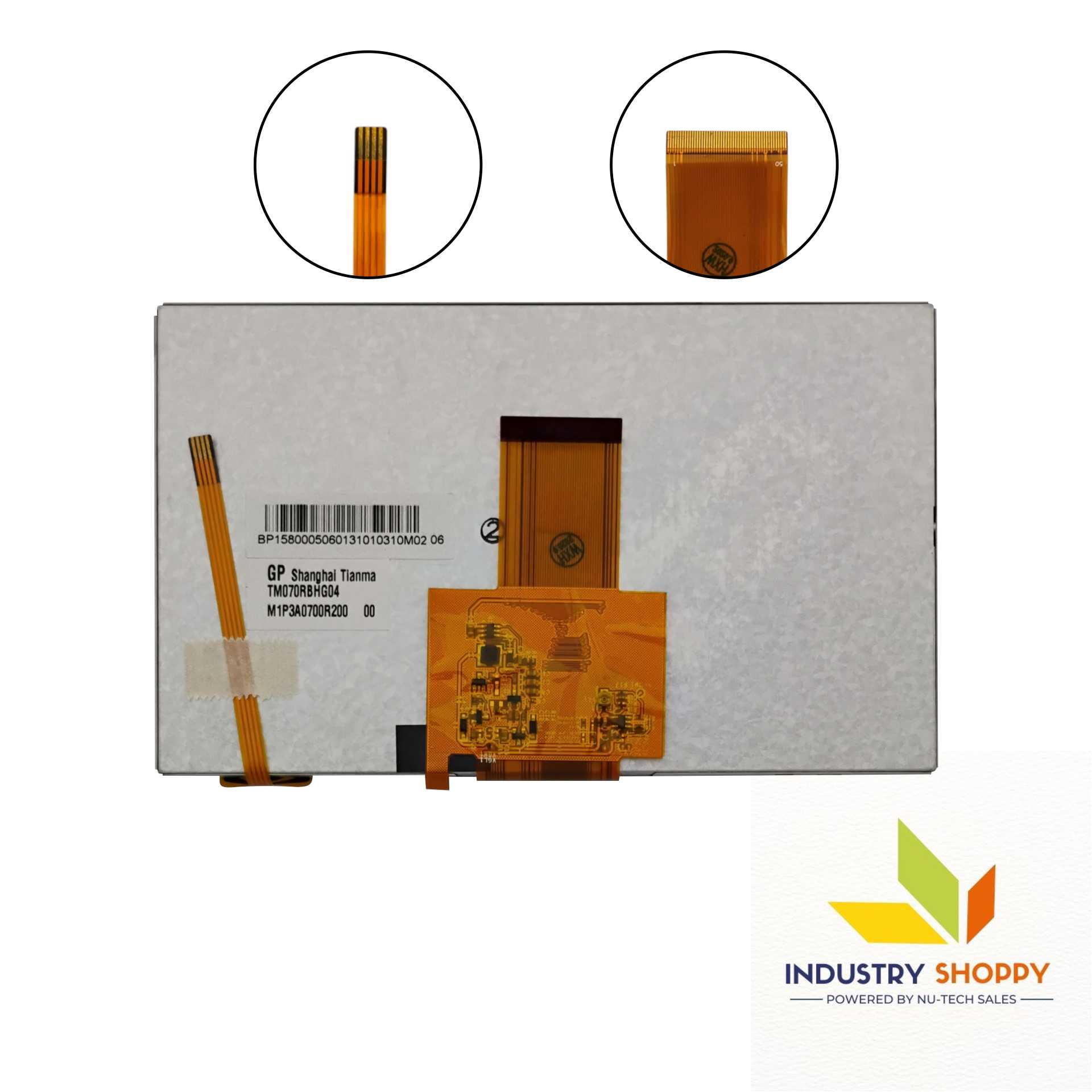

Built on TN, Normally White, Transmissive technology, the module offers a smooth balance between performance and cost-efficiency. The Parallel RGB (1 ch, 6/8-bit) 50-pin FPC interface provides flexibility for system integration, while the WLED backlight ensures long-lasting illumination without an integrated driver.
With a 3.3V power supply and a robust operating temperature range from -20°C to 70°C, this panel stands out as a durable and reliable solution for demanding applications.
- It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
- Always turn off the power supply when you are inserting or disconnecting it from the input connector.
- Wipe off water drop immediately as it may cause discoloration or spots.
- Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
- Do not try to open or modify the module assembly.
- At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
- Severe temperature condition may result in different luminance, response time.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products, including sensors, HMIs, PLCs, and more, we cater to diverse industries by offering top-quality solutions. Moreover, our user-friendly platform ensures a seamless shopping experience, making it easier for customers to find exactly what they need. In addition, we prioritize efficiency and convenience, allowing businesses to streamline their procurement process. Furthermore, our commitment to reliability and customer satisfaction sets us apart from competitors, ensuring that every purchase meets the highest standards. As a result, we continue to be a trusted partner for industries seeking innovative and dependable solutions. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
| Weight | 750 g |
|---|---|
| Dimensions | 30 × 22 × 12 cm |
| Brands | Tianma |
| Condition | New |
| Warranty | 3 Months |
| Brand | Tianma |
| Diagonal Size | 7.0" |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Active Area | 154.08(W)×85.92(H) mm |
| Outline Dimension | 164.9(W)×100(H)×7.1(D) mm |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Panel Type | a-Si TFT-LCD, LCM |
| Treatment | Antiglare |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 50% NTSC |
| Signal Interface Type | Parallel RGB (1 ch, 6/8-bit) 50 pins FPC |
| Frame Rate | - |
| Power Supply | 3.3V (Typ.) |
| Backlight | WLED [3S8P] , W/O Drive |
| Operating Temp. | -20 ~ 70 °C |
| Storage Temp. | -30 ~ 80 °C |
| Production Status | - |
