Leuze IPRK95/44L.21 Photoelectric Sensor
Out of stock
- Brand : Leuze
- Supply voltage UB : 10 … 30 V, DC
- Switching element : Transistor, PNP
- Response time : 0.5 ms
₹31,400.00 ₹33,037.00 GST Extra
Out of stock
CompareLeuze IPRK95/44L.21 Photoelectric Sensor

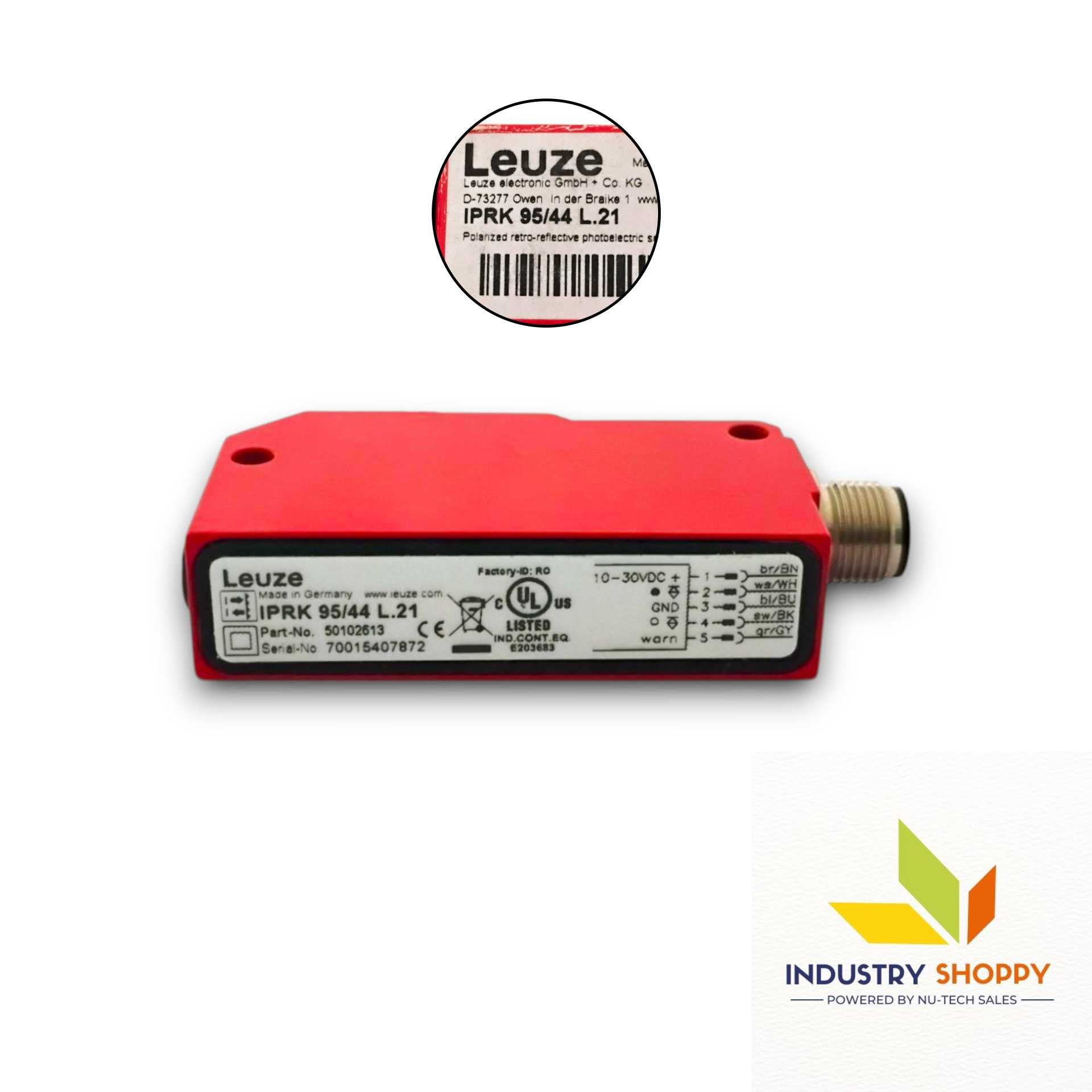

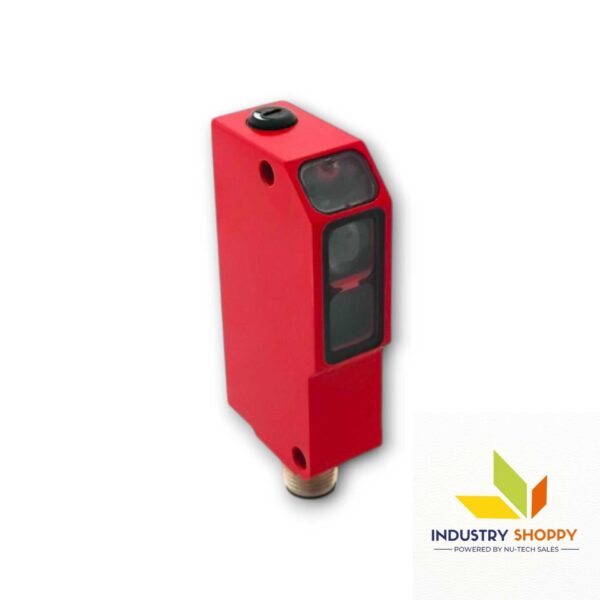

The Leuze IPRK95/44L.21 Photoelectric Sensor (IPRK95/44 L.21, 50102613) from the Series 95 offers high-performance retro-reflective sensing for industrial automation applications. With a maximum operating range of 6 meters (typical), this device uses a red LED light source (660 nm) and supports both Light ON and Dark ON switching via PNP transistor output.
Built to endure demanding environments, it features a rugged zinc metal housing, IP67 protection, and a glass lens cover for added durability. A multiturn potentiometer allows precise range adjustment, while LED indicators provide clear status feedback.

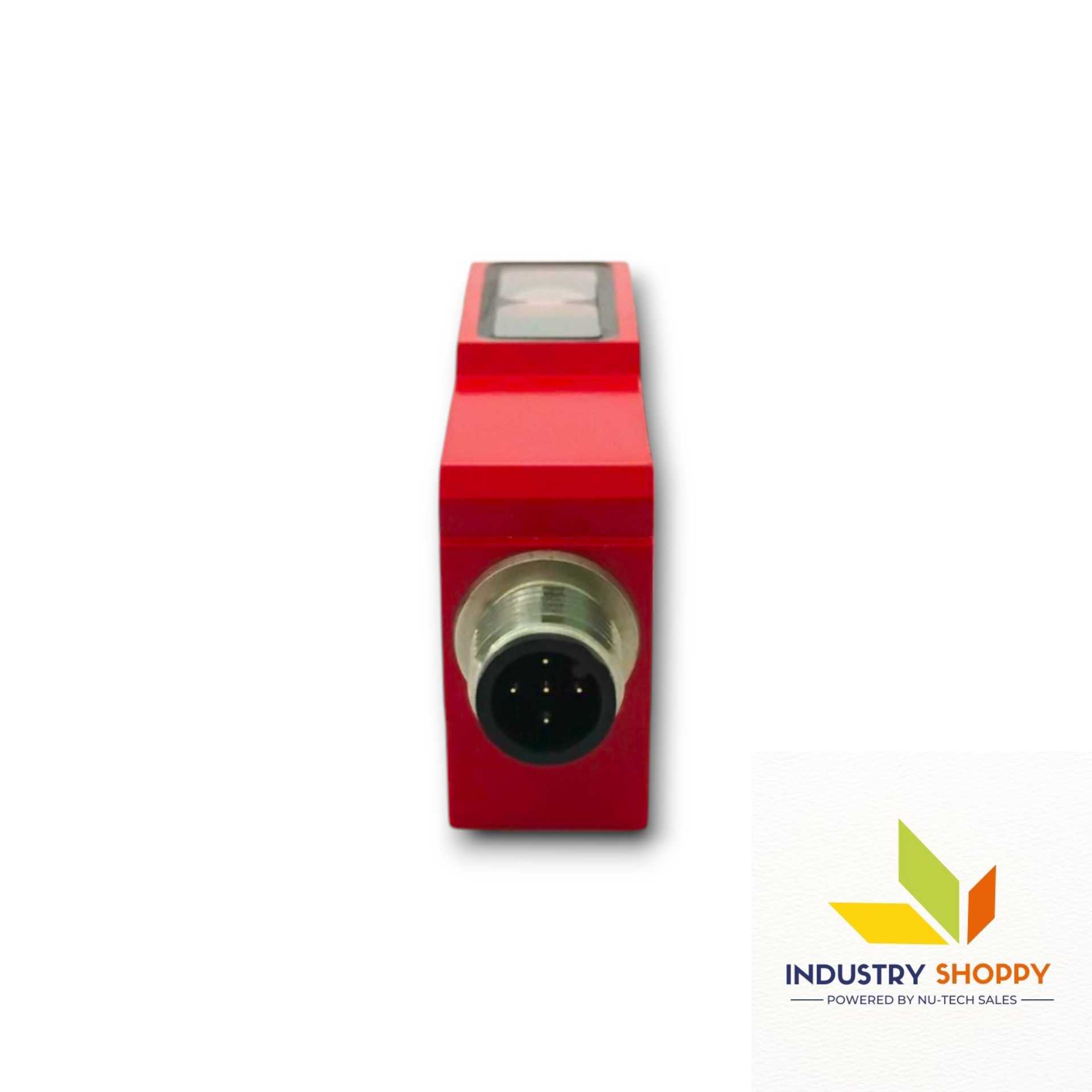

With a fast 0.5 ms response time and 1,000 Hz switching frequency, it’s well-suited for high-speed detection tasks. The sensor connects via a 5-pin M12 A-coded male connector and includes a warning output for enhanced diagnostic capabilities.
Ideal for reflective target detection in packaging, material handling, and logistics automation.
Our engineers actively inputted all the required details about this item accordance with the datasheet. Even though we strive to ensure accuracy at every step, some errors may still occur. It remains essential to stay vigilant. Some inaccuracies could still appear despite our efforts. Furthermore, all trademarks and trade names featured on our site are, without exception, the property of their respective owners. As a result, maintaining caution and awareness is key throughout the process. In addition, it is important to stay alert to ensure accuracy at every stage. Therefore, we recommend careful attention to avoid potential issues.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
| Weight | 240 g |
|---|---|
| Dimensions | 12 × 12 × 12 cm |
| Brands | Leuze |
| Condition | New |
| Warranty | 12 Months |
| Country of Origin | Germany |
| Brand | Leuze |
| Part No. | 50102613 |
| Series | 95 |
| Operating principle | Reflection principle |
| Operating range | 0 ... 4.2 m |
| Operating range | Guaranteed operating range |
| Operating range limit | 0 ... 6 m |
| Operating range limit | Typical operating range |
| Light source | LED, Red |
| Wavelength | 660 nm |
| LED group | 1 |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 35 mA |
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
| Switching element | Transistor, PNP |
| Switching principle | Dark switching |
| Switching element | Transistor, PNP |
| Switching principle | UB switching |
| Function | Warning output |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Readiness delay | 100 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 17 mm x 66 mm x 35 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Net weight | 90 g |
| Housing color | Red |
| Type of fastening | Through-hole mounting |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -25 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
| Protection class | II |
| Standards applied | IEC 60947-5-2 |
