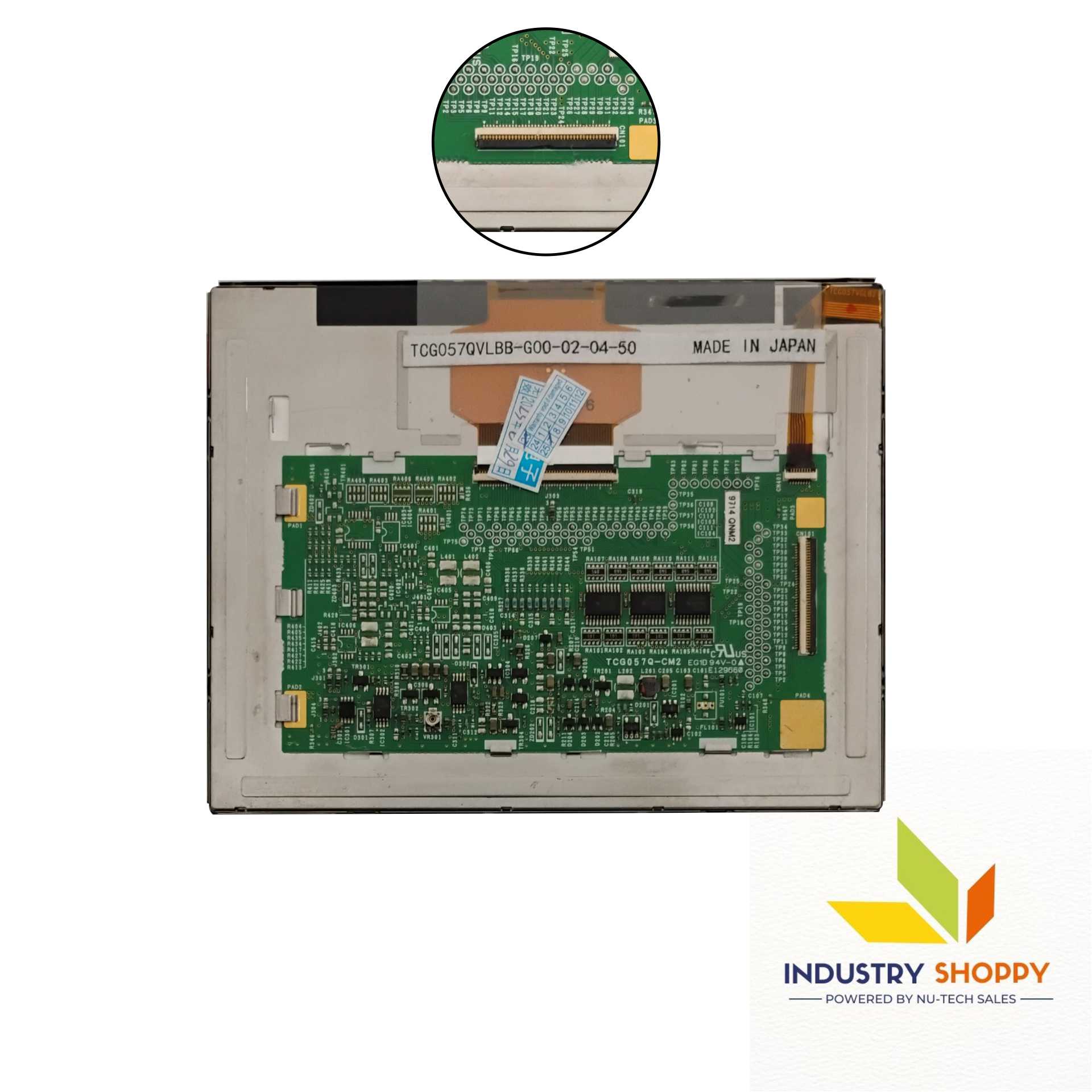

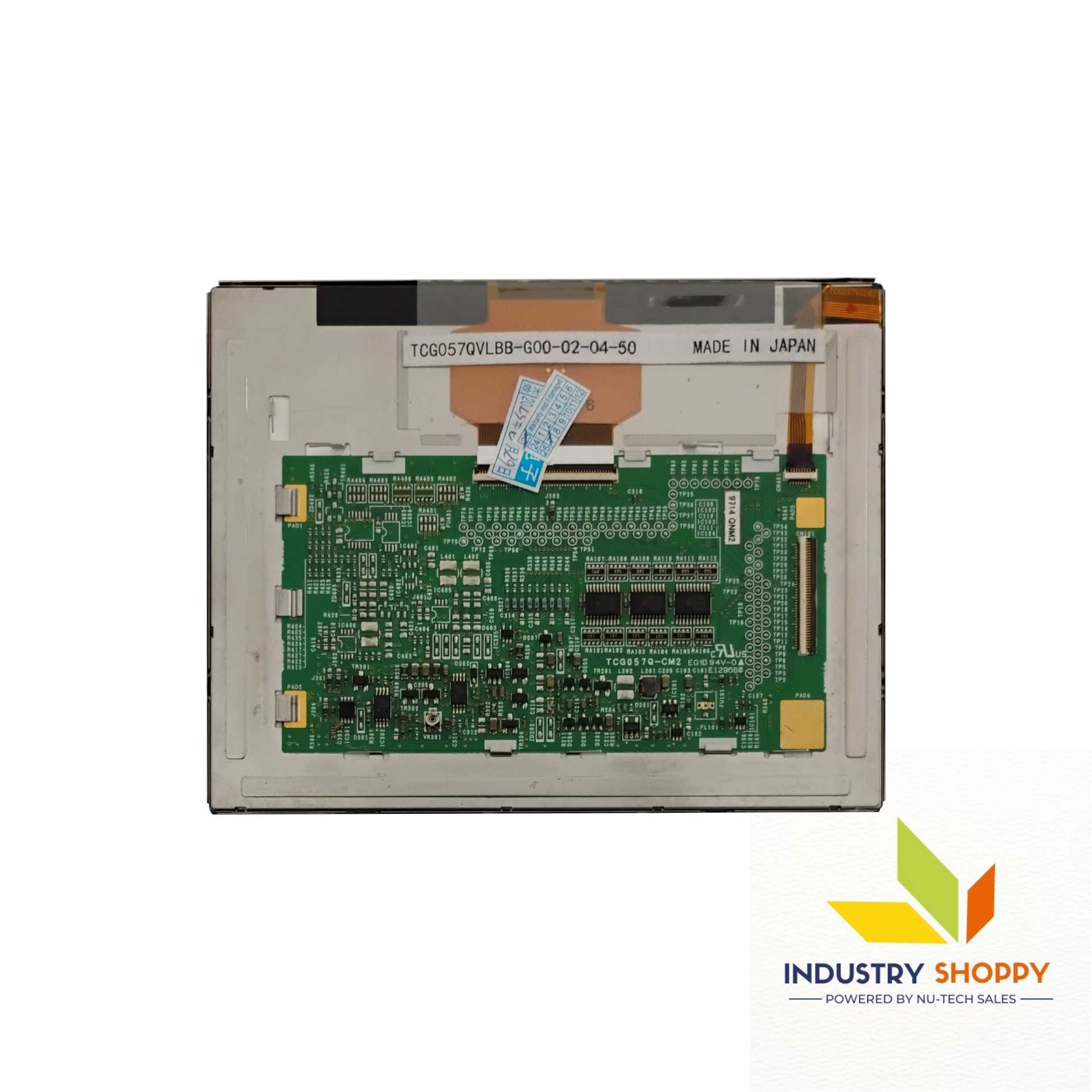

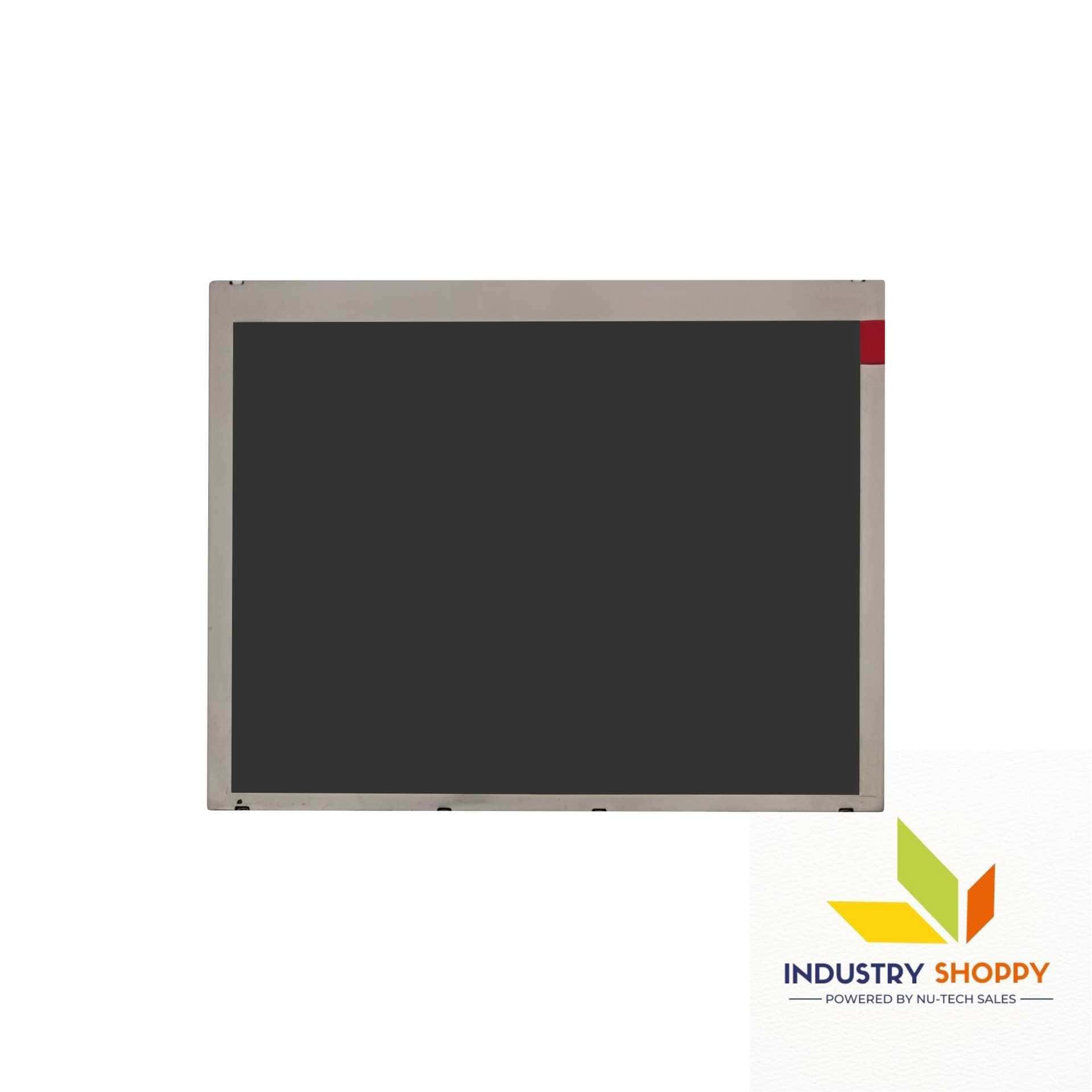

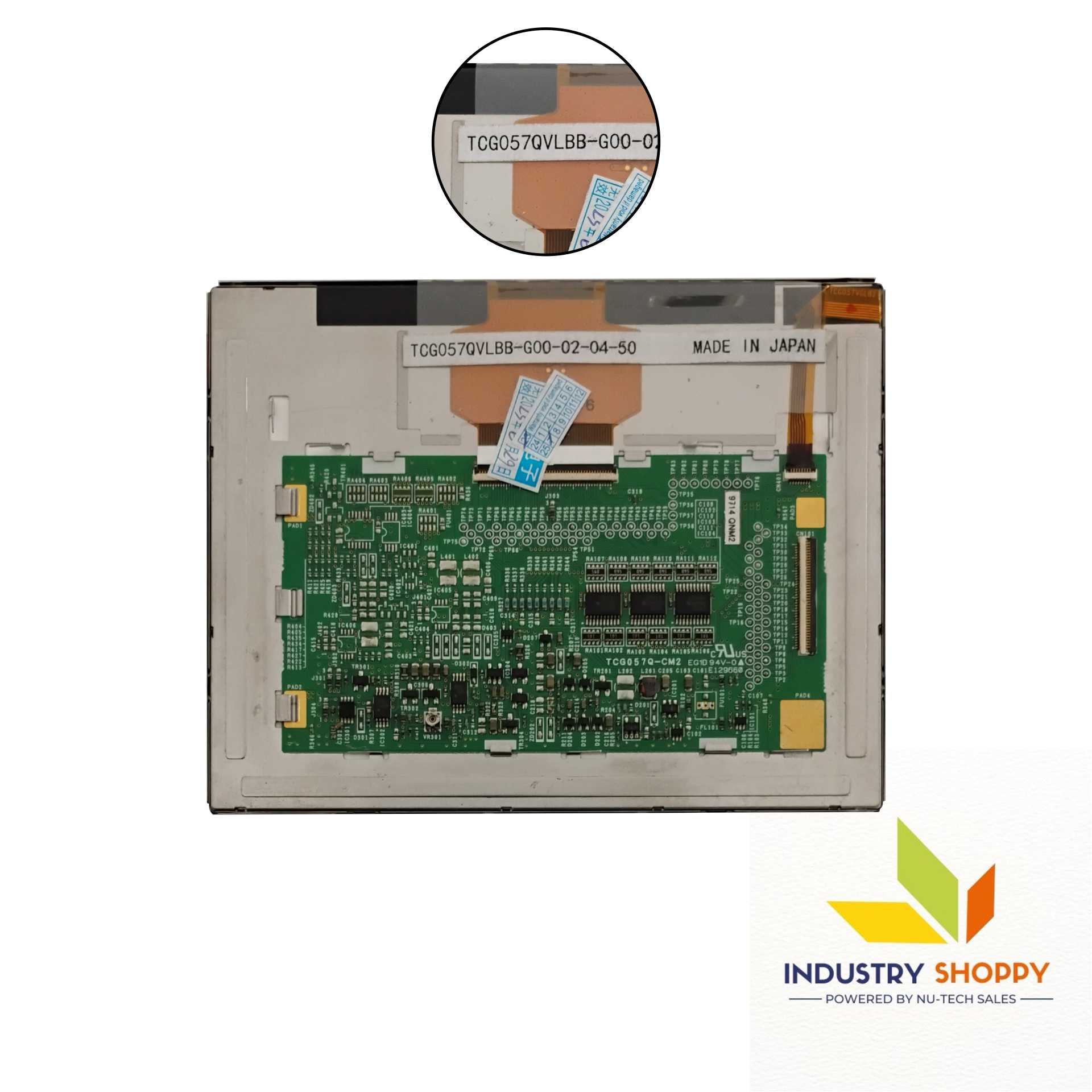

Kyocera TCG057QVLBB-G00 LCD Module
1 in stock
- Brand : Kyocera
- Diagonal Size : 5.7″
- Condition : New
- Panel Type : a-Si TFT-LCD, LCM
- Work Mode : TN, Normally White, Transmissive
₹17,640.00 ₹21,000.00 GST Extra
1 in stock
Kyocera TCG057QVLBB-G00 LCD Module
The Kyocera TCG057QVLBB-G00 LCD Module 5.7″ display delivers a resolution of 320(RGB)×240 (QVGA), offering a comfortable pixel density of 70PPI ideal for various industrial and commercial applications. Additionally, its active area of 115.2(W) × 86.4(H) mm ensures efficient display space, while the outline dimensions of 127.2(W) × 100.4(H) × 7.25(D) mm allow for flexible and easy integration into compact devices.
Moreover, the screen features a luminance of 240 cd/m² and a contrast ratio of 500:1 (Typ.) (TM), providing clear visibility even in moderate lighting conditions. With wide viewing angles of 80/80/80/80 degrees (CR≥5), it ensures consistent image quality from multiple perspectives. The panel incorporates a-Si TFT-LCD technology and operates in a TN, Normally White, Transmissive mode, enhancing the overall brightness and color performance.
Furthermore, it supports 262K colors with 60% NTSC color reproduction, guaranteeing vivid and accurate visuals. Connectivity is simplified with a Parallel RGB (1 ch, 6-bit) interface and a 40-pin connector. Powered by a stable 3.3V supply, the display uses a 3-string WLED backlight, rated for 40K hours of operation. Impressively, it is built to perform across a temperature range of -20 to 70°C and can be safely stored between -30 to 80°C.
- It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
- Always turn off the power supply when you are inserting or disconnecting it from the input connector.
- Wipe off water drop immediately as it may cause discoloration or spots.
- Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
- Do not try to open or modify the module assembly.
- At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
- Severe temperature condition may result in different luminance, response time.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
| Weight | 850 g |
|---|---|
| Dimensions | 28 × 22 × 10 cm |
| Brands | Kyocera |
| Condition | New |
| Warranty | 3 Months |
| Brand | Kyocera |
| Diagonal Size | 5.7" |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Active Area | 115.2(W)×86.4(H) mm |
| Outline Dimension | 127.2(W)×100.4(H) ×7.25(D) mm |
| Luminance | 240 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Panel Type | a-Si TFT-LCD, LCM |
| Treatment | Glare (Haze 0%) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 60% NTSC |
| Signal Interface Type | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Frame Rate | - |
| Power Supply | 3.3V (Typ.) |
| Backlight | 3 strings WLED , 40K hours , Without Driver |
| Operating Temp. | -20 ~ 70 °C |
| Storage Temp. | -30 ~ 80 °C |
| Vibration Level | - |
