AUO B101AW03-V.0 LCD Module
4 in stock
- Brand : AUO
- Diagonal Size : 10.1″
- Condition : New
- Panel Type : a-Si TFT-LCD, LCM
- Work Mode : TN, Normally White, Transmissive
₹7,820.00 ₹12,500.00 GST Extra
4 in stock

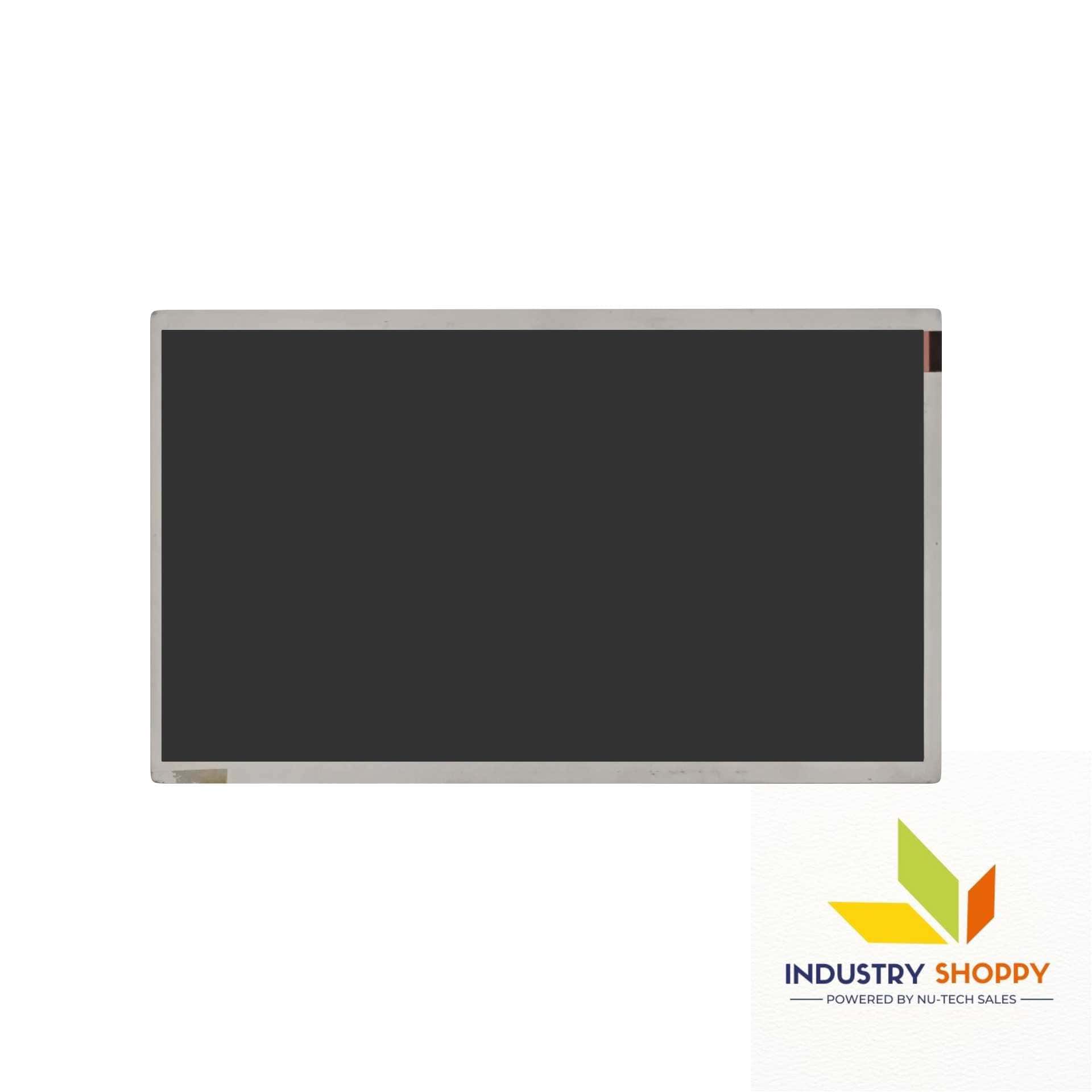

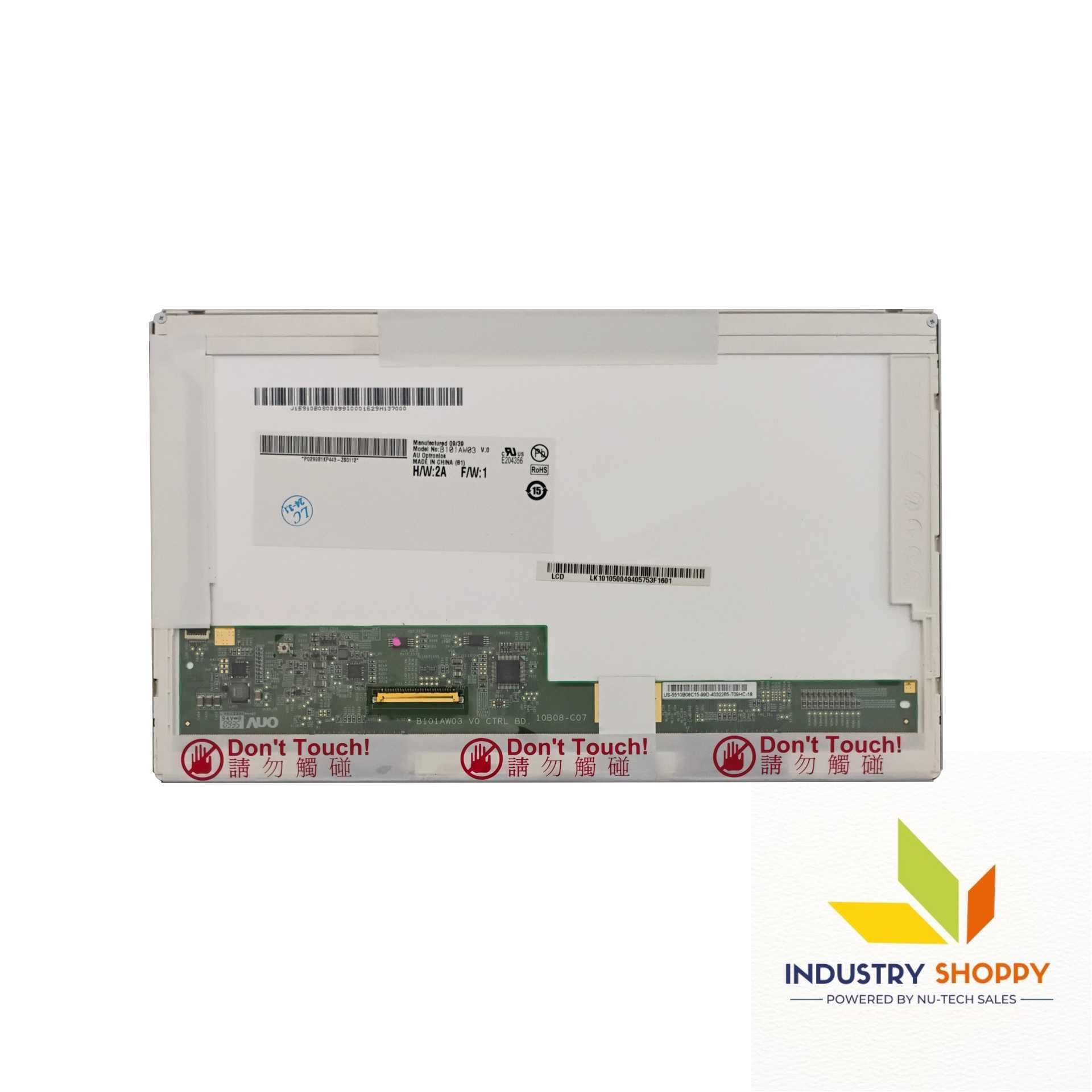

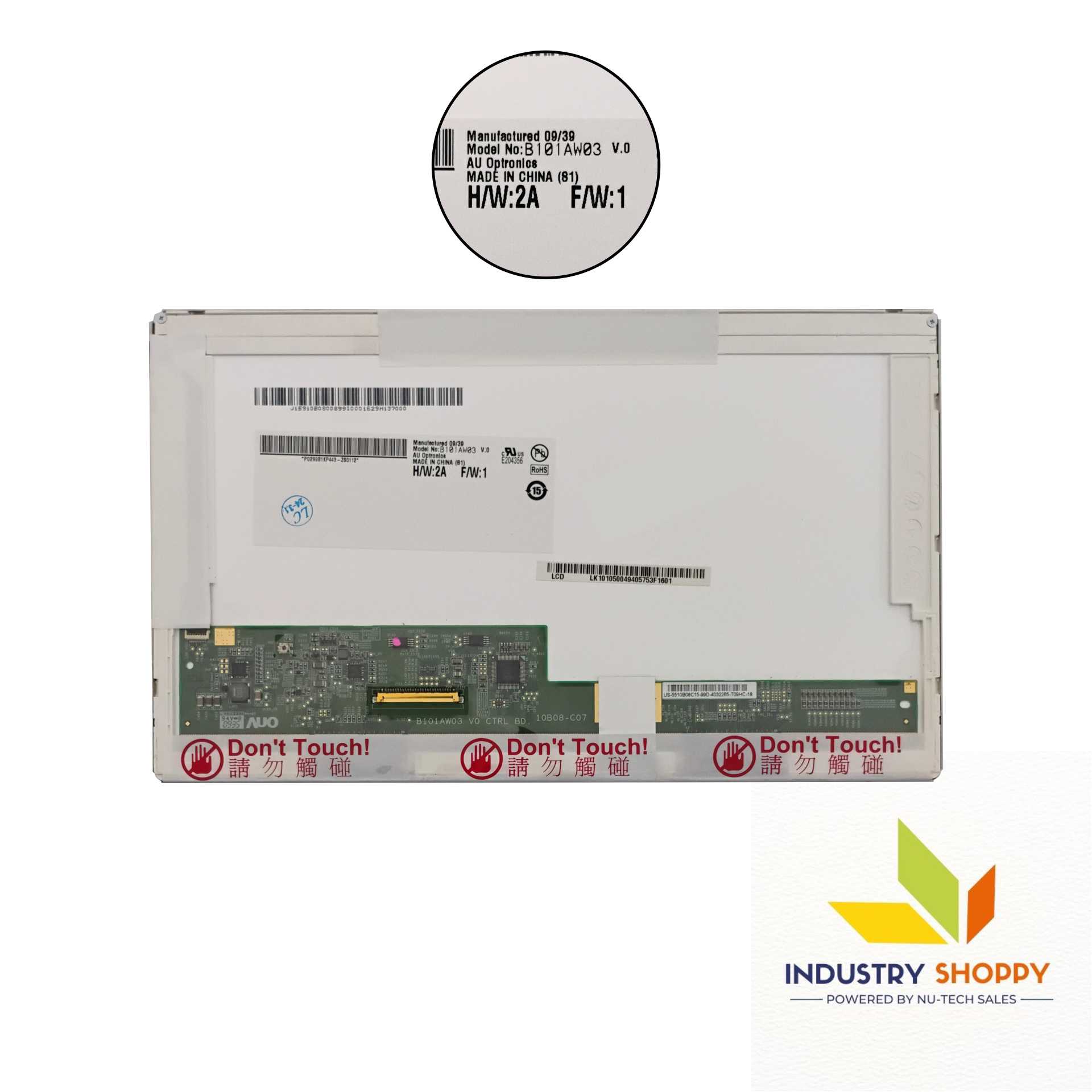

AUO B101AW03-V.0 LCD Module
The AUO B101AW03-V.0 LCD Module is a 10.1-inch a-Si TFT-LCD panel offers a highly functional and cost-effective display solution for industrial, automotive, and portable device applications. Featuring a resolution of 1024×600 pixels (WSVGA) and a pixel density of 117PPI, this module delivers sharp, detailed images, ensuring a comfortable visual experience for users.
With an active area measuring 222.72mm (W) × 125.28mm (H) and an outline dimension of 235.5mm × 143.5mm × 5.2mm, the panel strikes an ideal balance between screen size and compactness, facilitating easy integration into a variety of system designs. Additionally, its glare treatment with hard coating (3H) improves durability while enhancing readability under various lighting conditions.
Despite its modest luminance of 200 cd/m² and contrast ratio of 400:1 (Typ.), the display maintains acceptable performance in environments where high brightness is not critical. The viewing angles of 45/45 degrees horizontally and 15/35 degrees vertically, while narrower, are suited for direct viewing applications.

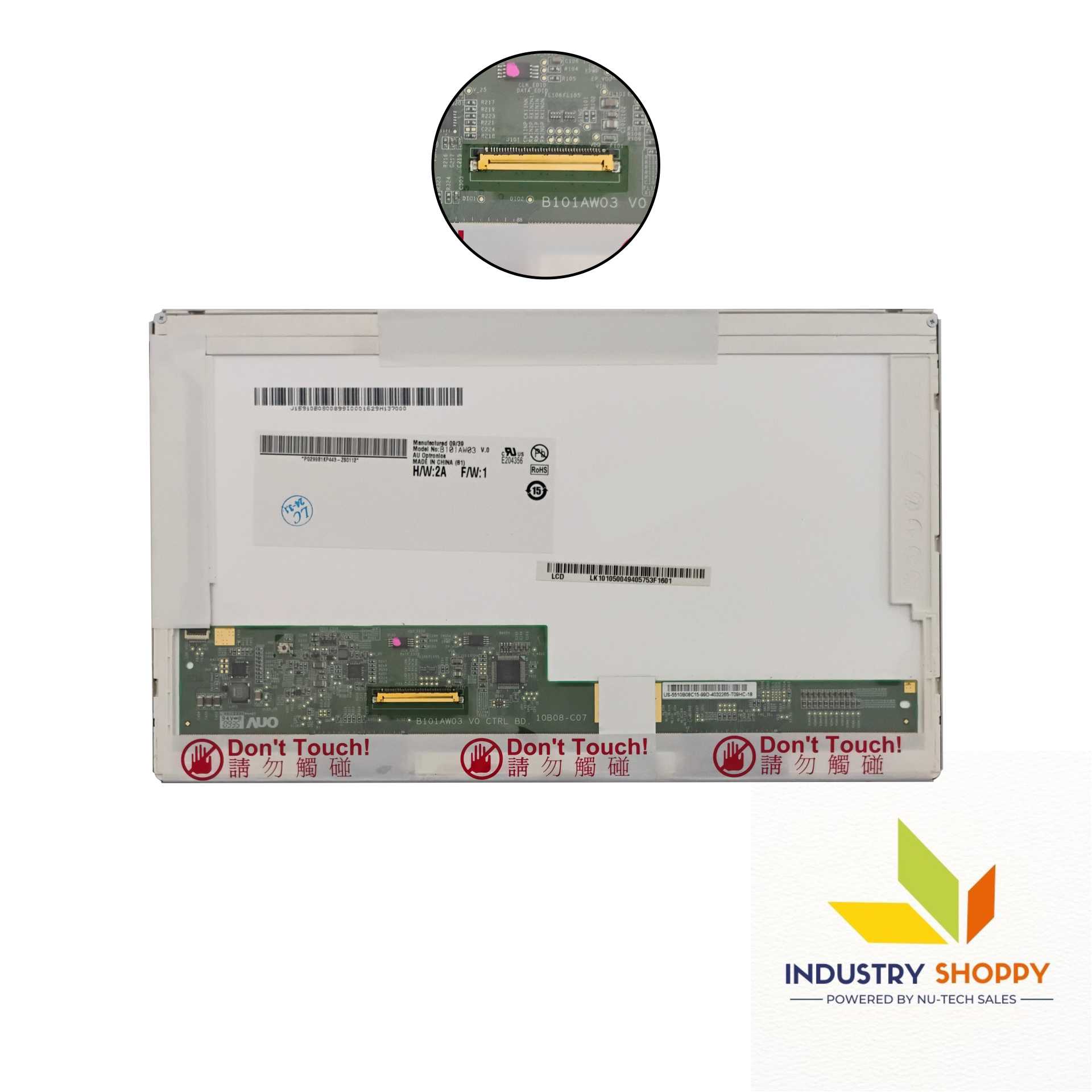

Operating on TN, Normally White, Transmissive technology, this panel ensures fast response times, rated at 16 ms (Typ.), and reliable color reproduction supporting 262K colors at 45% NTSC. Connectivity is managed via an LVDS (1 ch, 6-bit) 40-pin connector, offering stable signal transmission.
Built with a WLED backlight (12K hours lifespan) and operating within a -20°C to 60°C temperature range, the AUO 10.1″ display is a dependable option for varied practical applications.
- It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
- Always turn off the power supply when you are inserting or disconnecting it from the input connector.
- Wipe off water drop immediately as it may cause discoloration or spots.
- Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
- Do not try to open or modify the module assembly.
- At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
- Severe temperature condition may result in different luminance, response time.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products, including sensors, HMIs, PLCs, and more, we cater to diverse industries by offering top-quality solutions. Moreover, our user-friendly platform ensures a seamless shopping experience, making it easier for customers to find exactly what they need. In addition, we prioritize efficiency and convenience, allowing businesses to streamline their procurement process. Furthermore, our commitment to reliability and customer satisfaction sets us apart from competitors, ensuring that every purchase meets the highest standards. As a result, we continue to be a trusted partner for industries seeking innovative and dependable solutions. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
| Weight | 940 g |
|---|---|
| Dimensions | 39 × 37 × 12 cm |
| Brands | AUO |
| Condition | Refurbished |
| Warranty | 3 Months |
| Brand | AUO |
| Diagonal Size | 10.1" |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Active Area | 222.72(W)×125.28(H) mm |
| Outline Dimension | 235.5(H)×143.5(V)×5.2(D) mm |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Panel Type | a-Si TFT-LCD, LCM |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Signal Interface Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Frame Rate | 60Hz |
| Power Supply | 3.3V (Typ.) |
| Backlight | WLED , 12K hours , With LED Driver |
| Operating Temp. | -20 ~ 60 °C |
| Storage Temp. | -30 ~ 80 °C |
| Vibration Level | - |
