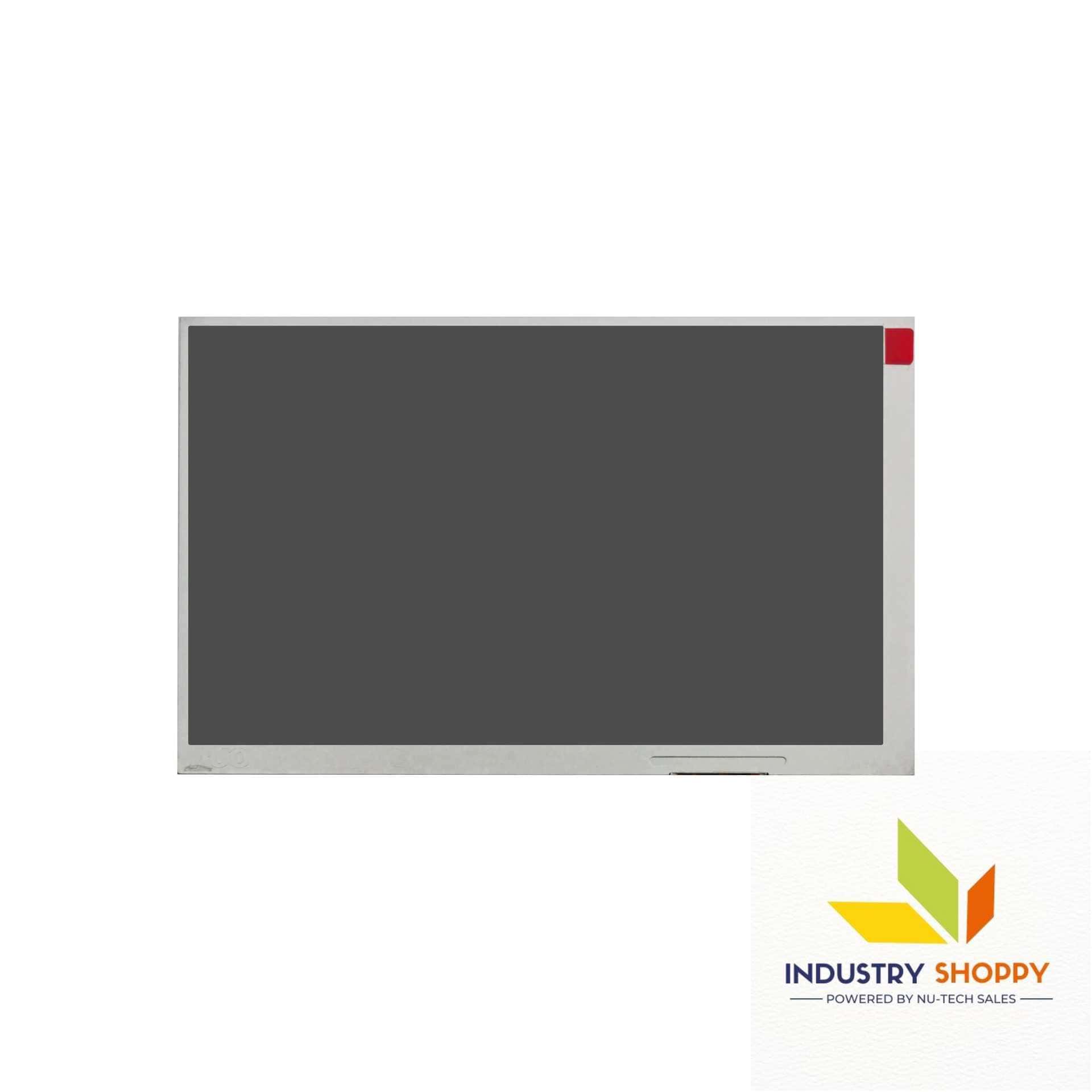

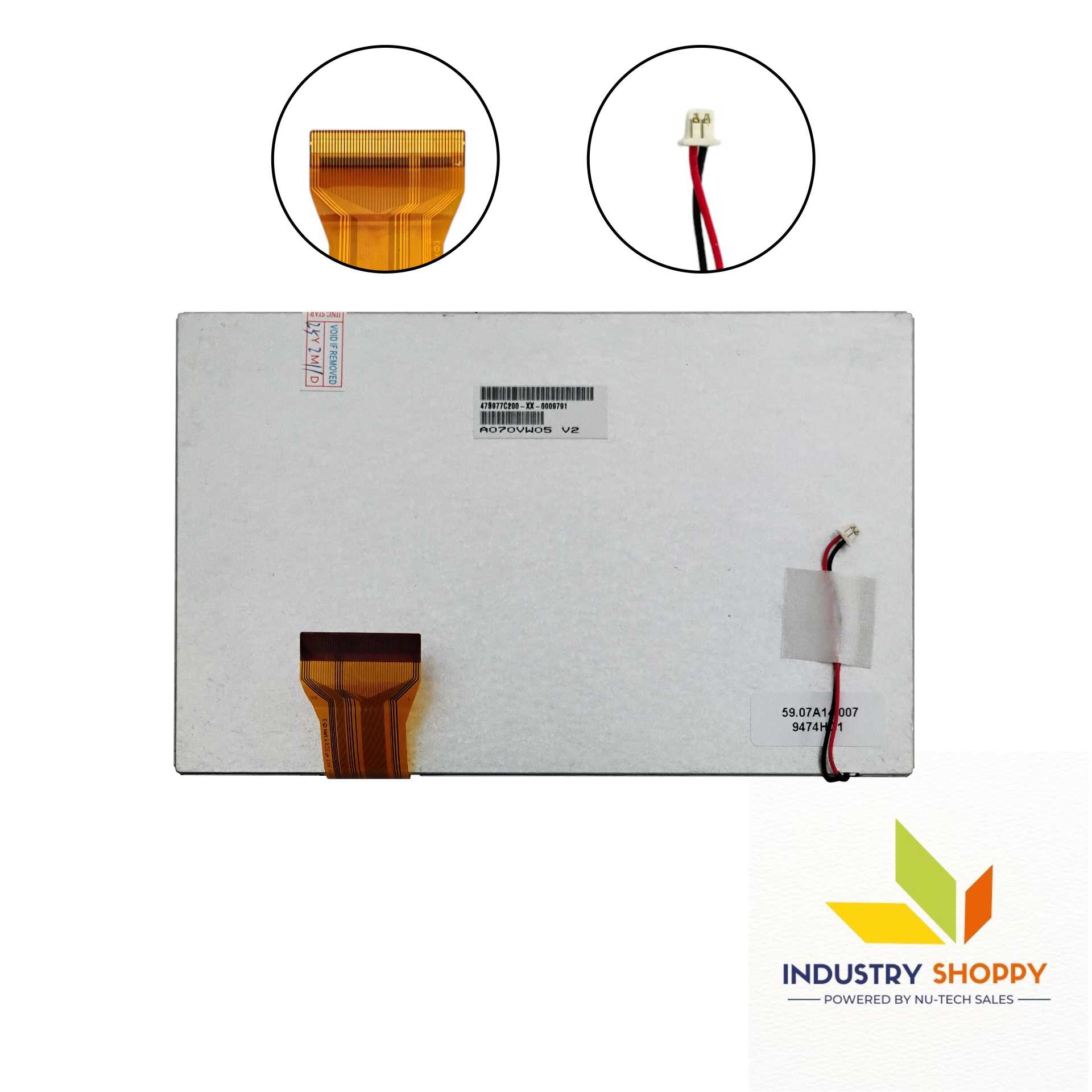

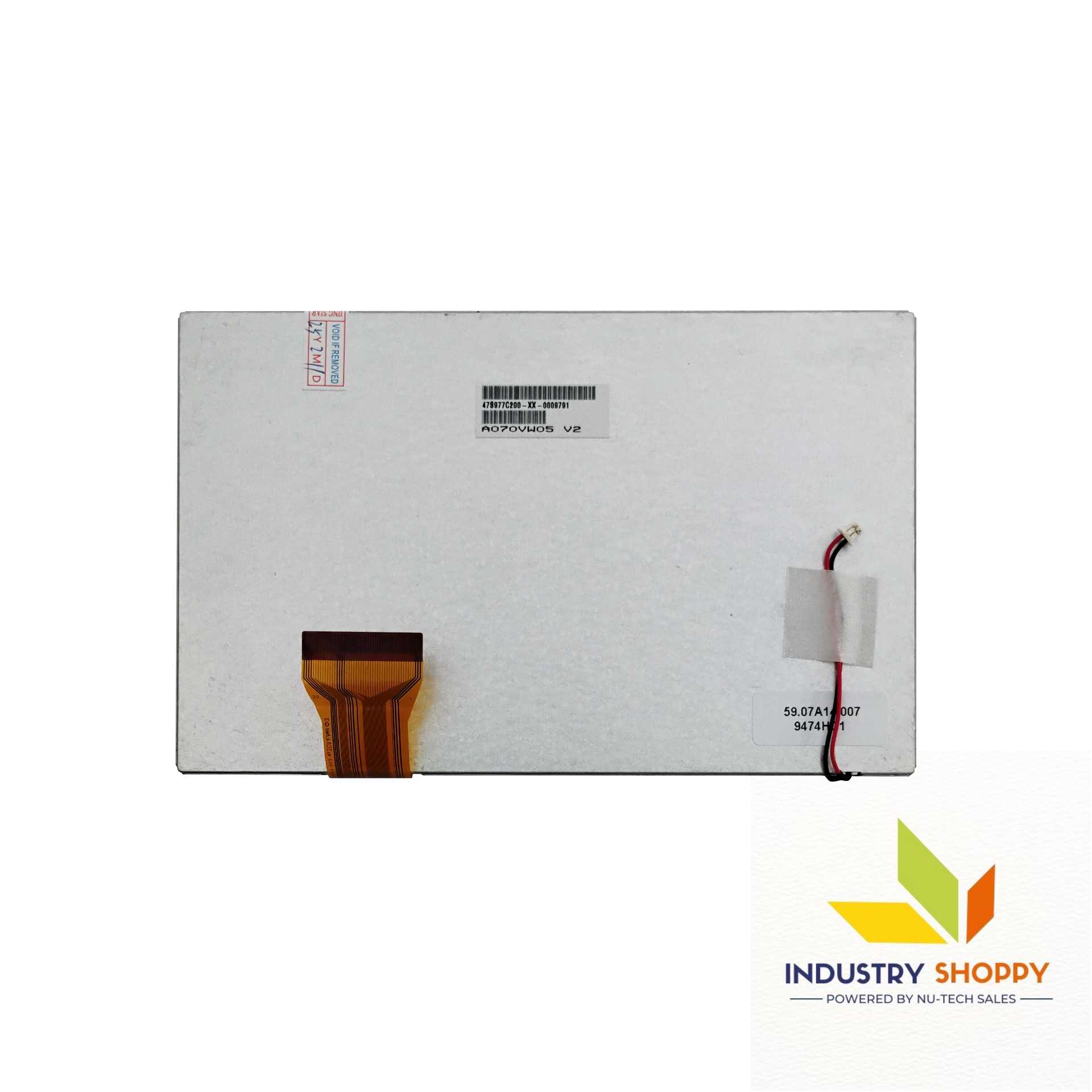

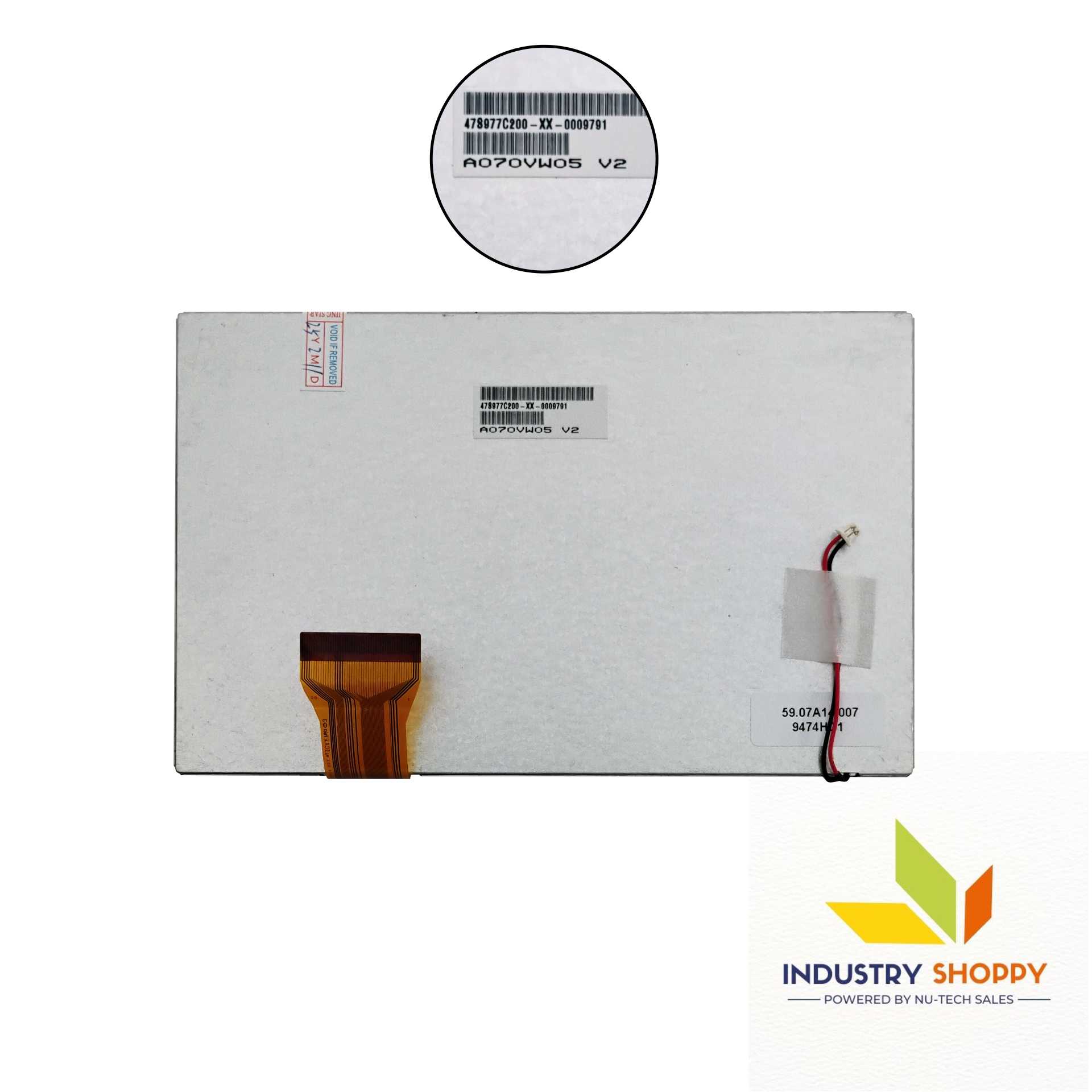

AUO A070VW05-V.2 LCD Module
2 in stock
- Brand : AUO
- Size : 7.0″
- Condition : New
- Panel Type : a-Si TFT-LCD, LCM
- Work Mode : TN, Normally White, Transmissive
₹6,250.00 ₹8,500.00 GST Extra
2 in stock
AUO A070VW05-V.2 LCD Module
The AUO A070VW05-V.2 LCD Module is 7.0″ a-Si TFT-LCD display is a compact yet powerful module, featuring an 800×480 WVGA resolution and a 133 PPI pixel density for detailed, crisp visuals. The active area measures 152.4(W)×91.44(H) mm, enclosed within a slim outline of 165×104×5.4 mm, making it ideal for space-constrained applications.
The display delivers a typical luminance of 375 cd/m² and a contrast ratio of 500:1, ensuring clear images with good brightness and decent depth. It adopts TN technology in a Normally White, Transmissive operating mode, complemented by an antiglare surface treatment and 3H hard coating for better visibility and durability.
With viewing angles of 65/65/45/65 degrees (CR≥10), it maintains acceptable image quality from multiple directions. The response times of 12ms (Tr) and 18ms (Td) contribute to smooth image transitions. It supports 16.7 million colors at 50% NTSC, ensuring vivid and accurate color reproduction.
Connectivity is via a Parallel RGB (1 ch, 8-bit) interface through a 50-pin FPC, with a multi-voltage power supply. The WLED backlight, rated for 10,000 hours, requires an external driver. Designed for reliability, the module operates between -20°C to 70°C and can be stored safely between -30°C to 80°C.
- It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
- Always turn off the power supply when you are inserting or disconnecting it from the input connector.
- Wipe off water drop immediately as it may cause discoloration or spots.
- Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
- Do not try to open or modify the module assembly.
- At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
- Severe temperature condition may result in different luminance, response time.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
| Weight | 750 g |
|---|---|
| Dimensions | 28 × 20 × 8 cm |
| Brands | AUO |
| Condition | New |
| Warranty | 3 Months |
| Brand | AUO |
| Diagonal Size | 7.0" |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Active Area | 152.4(W)×91.44(H) mm |
| Outline Dimension | 165(H)×104(V) ×5.4(D) mm |
| Luminance | 375 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Panel Type | a-Si TFT-LCD, LCM |
| Treatment | Antiglare, Hard coating (3H) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 50% NTSC |
| Signal Interface Type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Frame Rate | - |
| Power Supply | 3.3/3.3/11/18/-8V (Typ.)(VDDIO/GVDDIO/AVDD/VGH/VGL) |
| Backlight | WLED [3S9P] , 10K hours , W/O Driver |
| Operating Temp. | -20 ~ 70 °C |
| Storage Temp. | -30 ~ 80 °C |
| Vibration Level | - |
